2D-Scan-System
intelliSCAN FT
The Smart Industry Standard
- Designed for 2D applications
- Perfectly suitable for electro-mobility applications
- Compact and precise scanner
- Flexible optical configuration
The intelliSCAN FT with mechanically adjustable collimation can be used for static welding applications and on-the-fly. This 2D scan system with F-Theta optics guides the laser beam fast and precise in a two-dimensional scan field. The compact scanner design, which supports straight as well as 90 degree collimation implementation, simplifies machine integrations even if the space is limited.
The scan system is dimensioned for fiber coupled pane and fiber lasers with an output of up to 8 kW. Real time monitoring of all important status parameters is possible due to a fully digital iDRIVE technology by SCANLAB. In addition, the intelliSCAN FT is equipped with an internal sensor system for automatic self-calibration (ASC). This intelligent reference system permits a fast calibration of the galvanometer drives and therefore actively compensates for drift effects.

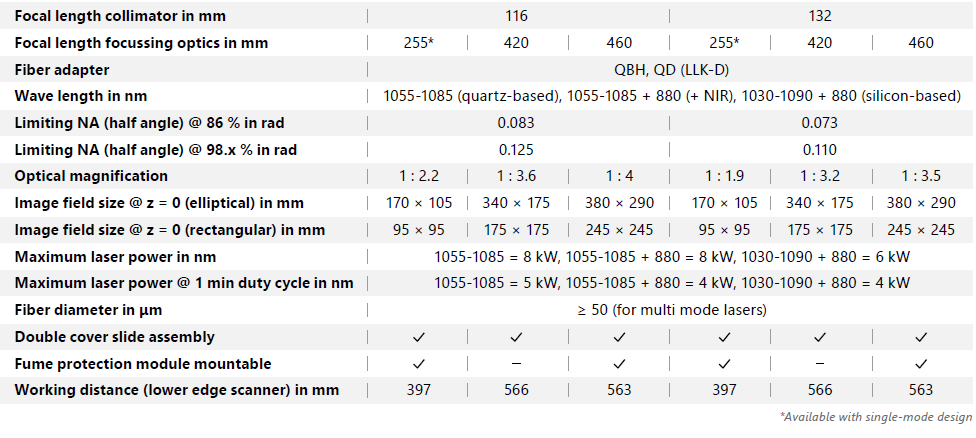

Optical Specifications intelliSCAN FT
Options and Expansions
Beam Divider
- For the simultaneous installation of different sensors
- For example, camera system and process monitoring
Technical Data
| Double cover slide assembly | Yes |
|---|---|
| Fume protection module | Yes, optional |
| Weight (without attachments) | 14.4 kg |
| Operating temperature | 25 °C ± 10°C |
| Supply voltage (requirements) | 30 V DC (29 – 33 V), respectively max. 8 A |
| Specification cooling fluid | 2 l/min at 20 °C and Δp < 0.1 bar; p < 4 bar |
| Filter unit purge air specification | ISO 8573 - 1 : 2010, class 5.4.4 |
| Positioning accuracy | < 0,2 mm |
| Repeatability (RMS) | < 2 μrad |
| Long-term drift over 8 h (operating temperature) | < 0,2 mrad (with ASC, at operating temperature) |
| Camera / process sensor connection | Yes |
| Collimator cover slide | Yes, interchangeable |
| IP protection class | IP54 |
| Design for OCT option | On request |
